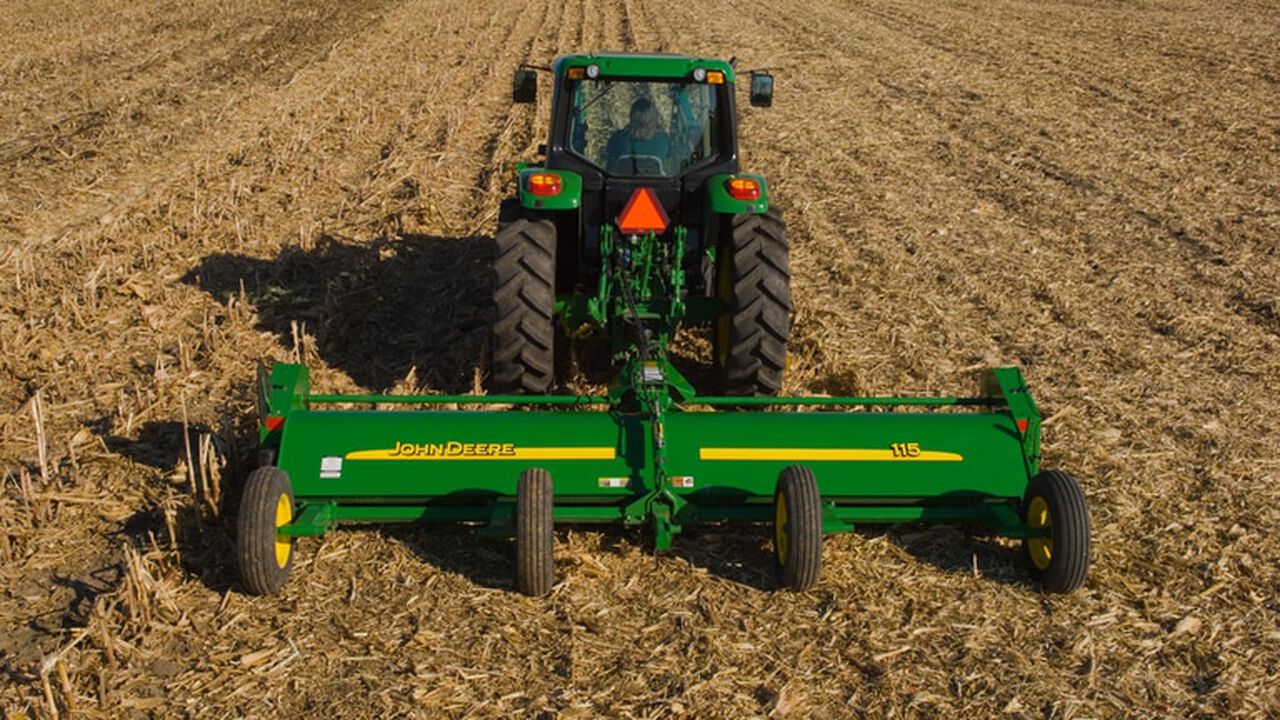

115 Drawn Flail Shredder, image number 0
Click to Zoom

115 Drawn Flail Shredder

New Built to Order
SKU: 0115xp
Contact Sales for Pricing
877-AKRS-NOW
Apply for Financing
Delivery available — Contact AKRS Sales for details.
Heavy-duty gearboxSteel rotor bearingsConvenient rear grease fittingsSquare rotor designed for superior strength
Drawn tractor hookup Drawn tractor hookup
#
The 100 Series Flail Shredder is available with a drawn tractor hookup.
Rubber deflectors Rubber deflectors
#
Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.
Gearbox Gearbox

A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:

  • Gearbox has a constant-duty rating of 150 hp and a maximum rating of 225 hp.
Rotor bearings Rotor bearings

The rotor bearings are now made of steel and have a three-lip seal to keep the dirt out and increase the life of the bearings.



The side and center bearings now have guards in order to avoid leaks and dust, increasing the life of the bearings.

Power requirements
Tractor PTO hp range
67-149 kW
90-200 hp
Tractor RPM
1,000 rpm
Gear case
Knives
Number of knives
120
Knife dimensions
7.87 x 63.5 x 143 mm
0.31 x 2.5 x 5.63 in.
Knife mounting system
Type
Heat-treated side slice
Knives overlap
Tip speed
171 km/h
106 mph
Rotor
Rotor speed
1,500 rpm
Rotor diameter
139.7 mm
5.5 in.
Rotor bearing
Sealed, self-aligning, piloted housing, auxiliary
Bearing size
41.28 mm
1.625 in.
Drivetrain
Belts
Power band, triple 5VX
PTO drivelines
Mainframe
Hitch
Drawn
Hood thickness
6.35 mm
0.25 in.
Safety deflector
Yes
Gauge wheels
4 infinitely adjustable
Warning lights
Cutting capacity
Cutting width
4.6 m
15 ft
Cutting height
7.6 to 25.4 cm
3 to 10 in.
Dimensions
Transport width
2.39 m
7.83 ft
Transport length
5.82 m
19.08 ft
Weight
1,497 kg
3,300 lb
Optional equipment
Easy transport
Constant velocity joint driveline
Yes
Skid shoes
