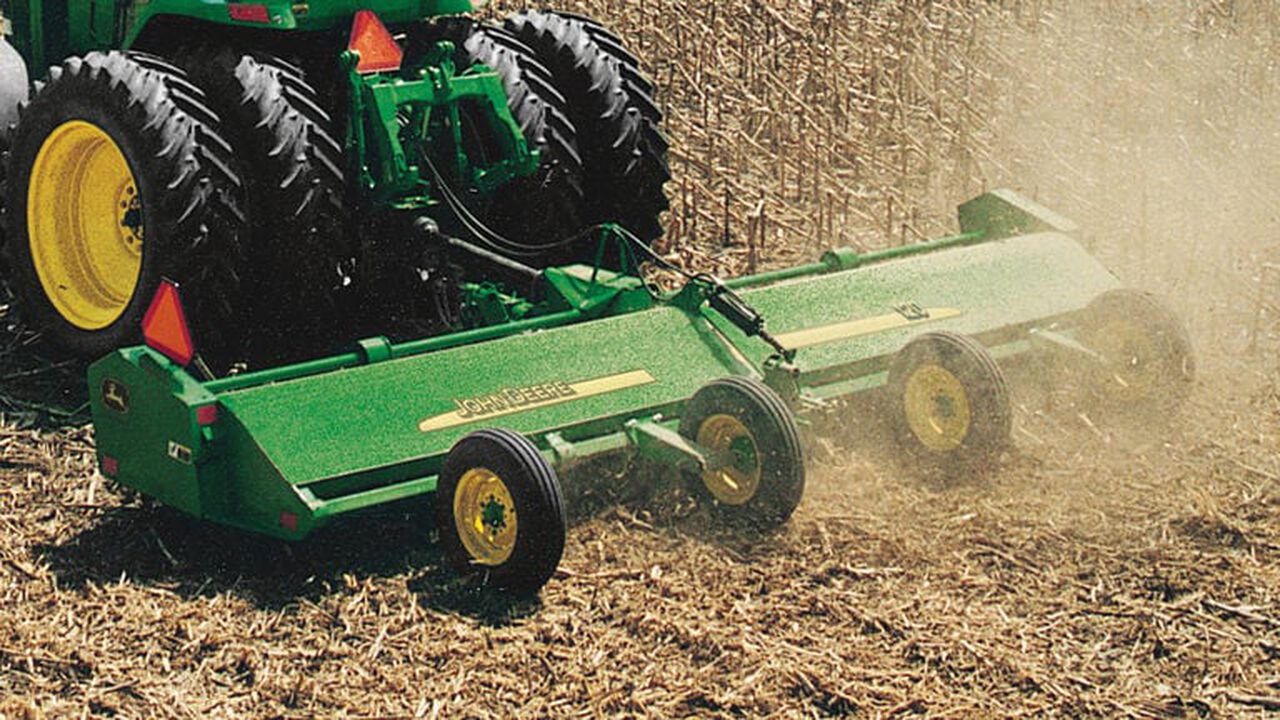

120 Drawn Flail Shredder, image number 0
Click to Zoom

120 Drawn Flail Shredder

New Built to Order
SKU: 0120xp
Contact Sales for Pricing
877-AKRS-NOW
Apply for Financing
Delivery available — Contact AKRS Sales for details.
Front rubber deflectorsHeavy-duty gearboxSteel rotor bearingsConvenient rear grease fittings
Drawn tractor hookup Drawn tractor hookup
#
The 100 Series Flail Shredder is available with a drawn tractor hookup.
Rubber deflectors Rubber deflectors
#
Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.
Gearbox Gearbox

A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:

  • Gearbox has a constant-duty rating of 150 hp and a maximum rating of 225 hp.
Rotor bearings Rotor bearings

The rotor bearings are now made of steel and have a three-lip seal to keep the dirt out and increase the life of the bearings.



The side and center bearings now have guards in order to avoid leaks and dust, increasing the life of the bearings.

Power requirements
Tractor PTO hp range
67-200 kW
90-200 hp
Tractor RPM
1,000 rpm
Gear case
Knives
Number of knives
160
Knife dimensions
Knife mounting system
7.87 x 63.5 x 143 mm
0.31 x 2.5 x 5.63 in.
Type
Heat-treated, reversible, side-slicer, hard-faced, tungsten-carbide knives optional
Knives overlap
Tip speed
171 km/h
106 mph
Rotor
Rotor speed
1,500 rpm
Rotor diameter
139.7 mm
5.5 in.
Rotor bearing
Sealed, self-aligning; piloted housing, auxiliary seals, and grease cavities
Bearing size
41.15 mm
1.62 in.
Drivetrain
Belts
Power-band, triple 5VX
PTO drivelines
Mainframe
Hitch
Drawn
Hood thickness
6.35 mm
1/4 in.
Safety deflector
Yes
Gauge wheels
7.60-15 infinitely adjustable row spaces
Warning lights
Cutting capacity
Cutting width
6.1 m
20 ft
Cutting height
7.6 to 25.4 cm
3 to 10 in.
Dimensions
Transport width
2.4 m
7.8 ft
Transport length
7.3 m
24.1 ft
Weight
2,100 kg
4,630 lb
Optional equipment
Easy transport
Yes
Constant velocity joint driveline
Yes
Skid shoes
