Product Images

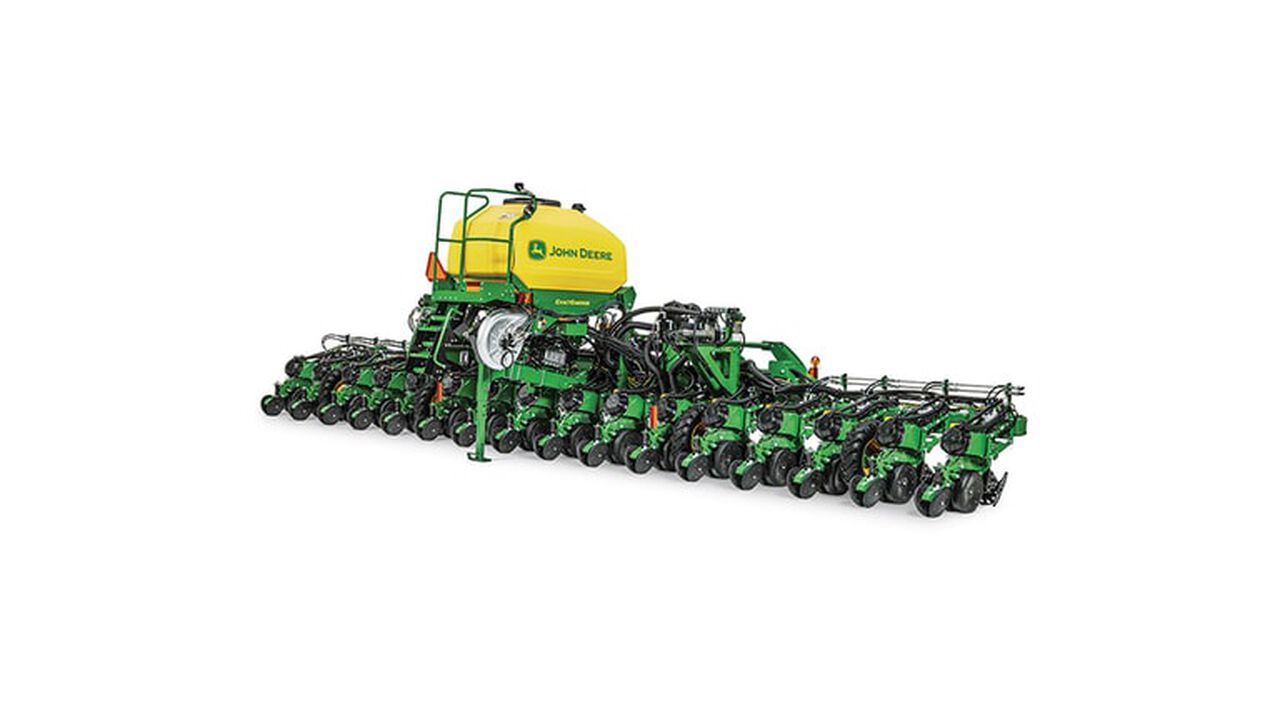

1725C Planter, image number 0
Click to Zoom

1725C Planter

New Built to Order
SKU: 1725ch
Contact Sales for Pricing
877-AKRS-NOW
Apply for Financing
Delivery available — Contact AKRS Sales for details.
12-row, 36-, 38-, or 40-in. spacing (no lift-assist wheels)16-row, 30-in. spacing (optional lift-assist wheels)Hydraulic wing locks for faster field-to-field transportIncreased CCS tank from 35-to-55-bushelAvailable with optional ExactEmerge™ or MaxEmerge™ 5e Row UnitFolding staircase to prevent damage and improve accessibility
Key Specs
Number of rows
12
Row spacing
12-row: 91.4 or 96.5 cm
36 or 38 in.
Frame - Fold configuration
Stack-folding
Frame - Flexibility
Up: 10 degree (angle)
Down: 7 degree (angle)
Row unit seed hoppers
Mini-hoppers
Seed Meters
Base
Vacuum
Rows and Row Spacing
Number of rows
12
Row spacing
12-row: 91.4 or 96.5 cm
36 or 38 in.
Frame
Fold configuration
Stack-folding
Frame tube size
Fold-and-go from tractor cab
Flexibility
Up: 10 degree (angle)
Down: 7 degree (angle)
Hitch
Base
Optional
Rear hitch
Lift System
Type
Integral only
Number of cylinders
Tires
Base
12.5L-15SL 20 ply implement: 303 kPa
3.0 bar
44 psi
7.60-15 8 ply implement: 359 kPa
3.6 bar
52 psi
7.6-15 6 ply - traction: 276 kPa
2.8 bar
40 psi
Optional
Quantity
Row Units
Type
ExactEmerge™ row units
or MaxEmerge™ 5e row units
Opener
Tru-Vee double disk
Depth gauging
Adjustment
Walking wheels
Row unit seed hoppers
Mini-hoppers
Row unit down force
Active pneumatic downforce or individual row hydraulic downforce (IRHD)
Scrapers, opener blades
Seed tube sensors
Seed Meters
Base
Vacuum
Optional
Finger pickup
Radial bean meter
Central Commodity System
Seed capacity
1938 L
55 bu
Drive System
Base
Electric drive: EPTO only: 56 V
Optional
Number of drive wheels
Drive wheel disconnect
Counter shaft
Drill shaft
Seed transmission
Transmission combinations
Markers
Type
Control
Marker disk
Shear bolt protection
Less marker option
Closing System
Rubber tire closing system
Cast iron closing system
Herbicide and Insecticide
Insecticide only hopper
Herbicide only hopper
Insecticide and herbicide hopper
Liquid Insecticide System
System available
Tank capacity
Seed Monitor System
Base
SeedStar™ 4HP electronic system
Optional
Tillage Attachments
Unit-mounted coulter
Frame-mounted coulter
Bubble blade
.63-in. fluted blade (25 flutes)
.7-in. fluted blade (13 flutes)
1-in. fluted blade (8 flutes)
Row tillage support hanger
Tine tooth
Cons. furrower w/ leading cutout blade
V-wing bed sweeps
Row cleaner
Row cleaner - unit-mounted coulter
Row cleaner - unit-mounted DD fert. opener
Fertilizer
Onboard / towed / tractor tanks
Tank capacity
Fixed-rate application
Variable-rate application
Pump type
Pump rate
Fertilizer opener type
Flow divider distribution system
Pressure manifold distribution system
Dry fertilizer
ExactRate Fluid Transfer System
Dimensions
Transport width (with markers)
Transport width (without markers)
12-row: 91.5 cm (36 in.): 6.7 m
22 ft
12-row 96.5 cm (38 in.): 7.06 m
23.17 ft
Transport length
Transport height
12-row: 91.5 cm (36 in.): 4.1 m
13.42 ft
12-row 96.5 cm (38 in.): 4.2 m
13.83 ft
Transport weight
Transport underframe clearance
On 8000 Series tractors with 18.4-42 tires: 4 m
13.2 ft
Field operation height
Field operation width
Field operation length
Ag Management Solutions
Map-based seeding
Field documentation
Parallel tracking
Additional Information
Recommended tractor horsepower
Recommended tractor hydraulics
Warranty length
Date collected
