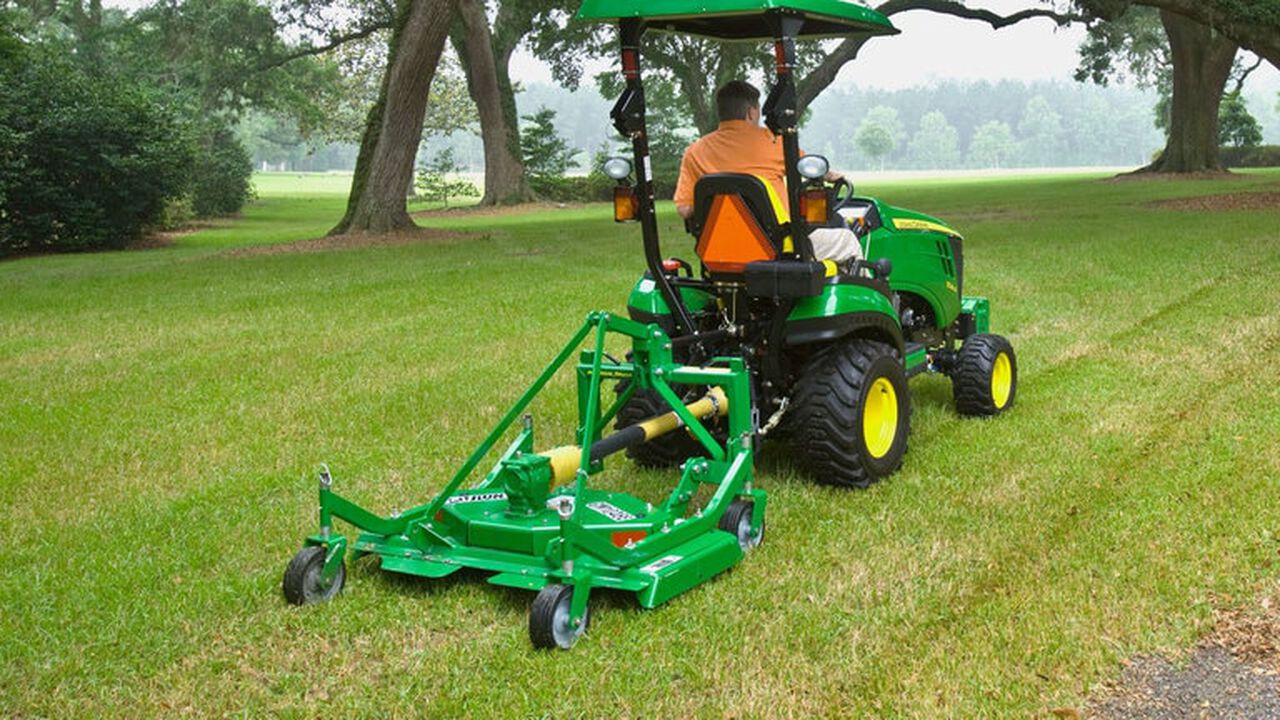

GM10E Series Grooming Mower

Gearbox with cooling fins

The GM10 Series Mowers come with a 22.4-kW (30-hp) rugged gearbox. Cooling fins help extend the life of the gearbox.

Three blades per deck

To meet specific mowing needs, choose from two blade types:

• Low lift
• High lift (standard)

Follow ground contours

These rear-discharge mowers are equipped with four swivel wheels that follow ground contours and prevent scalping. Stamped, steel-reinforced wheel arms maintain a consistent cutting height.

iMatch quick-hitch

The GM10, GM10E, and GM20 Grooming Mowers are only compatible with iMatch using a kit (code 9630).

Kit includes baffles, blades, and guard supports

A mulching kit is available as an attachment for field conversion. The mulching kit includes unique mulching blades, baffles, and guard supports to produce smaller clippings, which decompose faster than clippings that haven't been mulched.

Operators should follow the one-third rule for cutting height when mulching in grass.

This mulching kit also does an excellent job when mulching leaves.

Anti-scalping roller attaches to front of deck

An anti-scalping roller kit can be ordered as an attachment for field conversion for FM and GM Series Grooming Mowers when it is not standard equipment. The roller is attached to the front of the cutting deck to help reduce scalping.

Each kit contains one roller.
