Leave the frustrations of a laser system’s setup and maximum operating range behind. iGrade™ leveling system is a global positioning system (GPS) based water management system that can be used up to 2 km (1.2 miles) from an RTK base station.
iGrade’s performance is not affected by factors that traditionally impact lasers such as dust, wind, and operating at night. This allows more work to be done without the hassle of moving base stations or waiting for outside conditions to improve.
iGrade is not intended for precise, finish-grading applications. While users may experience sub-inch grading performance, environmental variations could cause vertical accuracy to vary up to +/- 5 cm (2 in.) from pass to pass. Click here to learn more about StarFire receiver vertical accuracy.

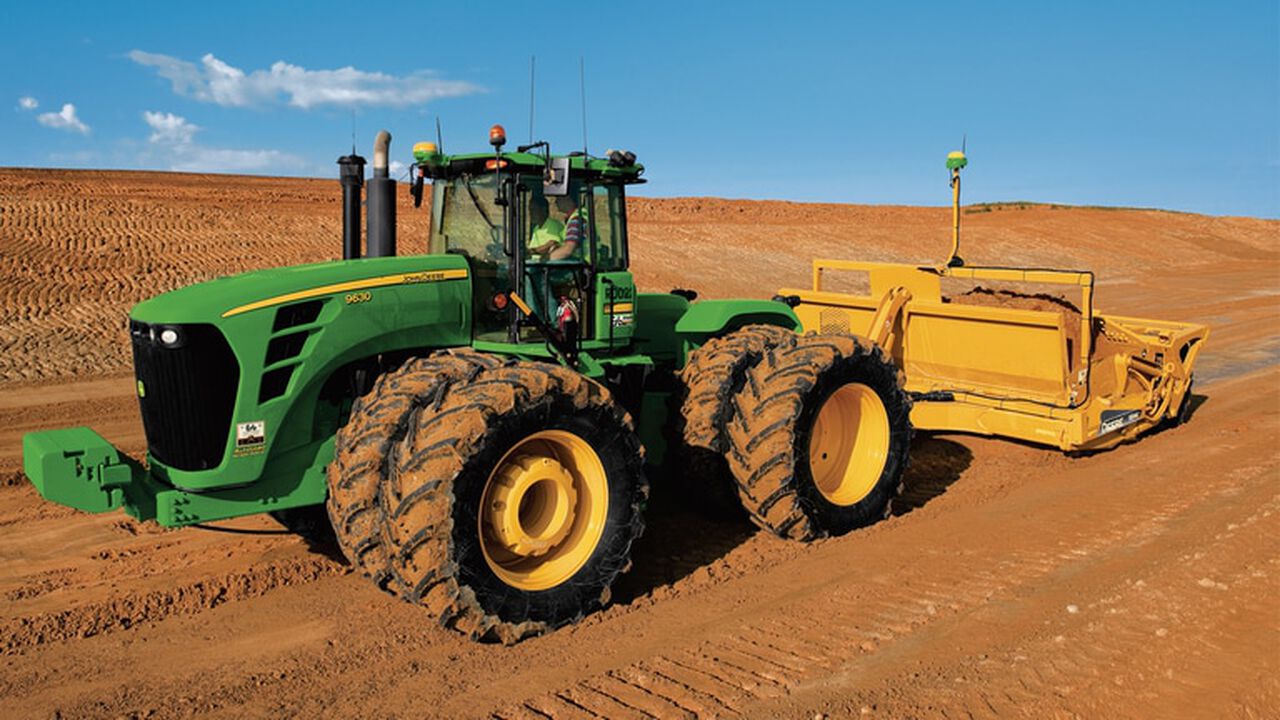

An iGrade™ leveling system activation (requires Application Controller 1100) reduces operator fatigue by automatically controlling the height of the scraper blade in water management applications. Manual adjustments are no longer needed. iGrade teams up with the Application Controller 1100 to constantly keep the scraper on grade, allowing the operator to spend more time focusing on the machinery and task.
An iGrade™ leveling system activation works with many of the different John Deere Precision Ag Technology components that producers may already own such as:
It requires a vehicle global positioning system (GPS) only; the receiver must have an SF2 or greater signal level.NOTE: Do not mismatch generations. If a StarFire 3000 is used on the machine, a StarFire 3000 must be used on the implement if utilizing a second receiver for specific operation.NOTE: See this link for further StarFire 6000 compatibility information.
iGrade is approved for the following platforms:
iGrade requires the receiver to have an RTK signal level. iGrade does not support WAAS, EGNOS, SF1, SF2, or SF3 signal levels.The John Deere Application Controller 1100 is required for iGrade activation.
UCC2 Application Controller 1100 (serial number PCXL01C201000+) is not compatible with original UCC1 Application Controller 1100 harnessing. Plugging the UCC2 controller into UCC1 harnessing will cause CAN bus issues due to no terminator in the circuit.
Ensure UCC2 main harness PFA11888 is used with the UCC2 Application Controller and replaces the existing harness connection. Adaptor harness schematics are available in the Technical Manual to create a wiring adaptor from UCC2 Application Controller 1100 to the existing harnessing from a UCC1 system.
Cut-fill maps allow producers to create desired contours by moving the least amount of earth. Cut-fill maps provide best-fit or multi-fit plane designs. Beyond land leveling, this solution can be used for infrastructure design of surface drainage, contours, and terraces.
iGrade™ leveling system offers cut-fill maps when teamed up with additional software and hardware. Learn more about iGrade and cut-fill maps from a local John Deere dealer.
The StarFire 6000 Receiver is not currently compatible with external antennas. The vertical accuracy performance of the StarFire 6000 with internal antenna for iGrade applications is similar to that of the StarFire 3000 with external iGrade antenna.The iGrade StarFire GNSS antenna (iGrade antenna) facilitates enhanced performance of the implement’s StarFire 3000 Receiver when utilized for iGrade that requires maximum vertical precision.Vertical accuracy can be impacted by signal interference that the StarFire 3000 Receiver is susceptible to, such as multipath. The iGrade antenna resists signal interference, allowing for the rejection of error that can typically be caused by multipath effects. It is compatible with global positioning system (GPS) offering L1, L2, and L5 satellite signals and Russian satellite constellation (GLONASS) offering G1 and G2 satellite signals, as well as the StarFire network (L-band), making it an excellent enhancement to the StarFire 3000 Receiver.The iGrade antenna is only necessary for iGrade users demanding the highest possible vertical accuracy for their applications and should not be installed on the following:
The iGrade antenna is only compatible with StarFire 3000 Receivers and is only intended for use on the implement receiver utilizing iGrade or other earthmoving applications. The StarFire 3000 Receiver must remain mounted to the same implement as the iGrade antenna being utilized. Use of the iGrade StarFire GNSS antenna in any other manner is neither permitted nor supported and can degrade desired performance of the paired receiver.NOTE: Do not mismatch generations. If a StarFire 3000 is used on the machine, a StarFire 3000 must be used on the implement. The iGrade antenna is recommended for commercial and high-use operators of iGrade using StarFire 3000 Receivers. Use of the iGrade antenna generally improves performance when experiencing conditions described above, but does not guarantee sub-inch grading accuracy.
This document lists all the compatible equipment approved with the software update 21-2 release and is subject to change with newer software updates. To ensure complete and proper compatibility, the most current version of implement control unit software, Generation 4 display software, or compatible farm management information software (FMIS) should be used. Non-current software versions will require an update before support can be provided. Unapproved software version configurations will not be supported.
The software update 21-2 release is not compatible with 4600 CommandCenter™ v1 processors. Software update 17-2 is the last release that was compatible with 4600 v1 processors.Server serial numbers are as follows:
John Deere Large Ag Tractors
*NOTE: For latest Precision Ag functionality, update machines equipped from the factory with v1 processor to v2.
John Deere Nutrient Applicators
John Deere Self-Propelled Sprayers
*NOTE: When using the 4640 Universal Display on a Hagie Sprayer, additional mounting and harnessing may be required.
NOTE: Current John Deere/Hagie field kits only offer GreenStar 3 2630 Display parts.NOTE: Multi-rank section control are not supported on Hagie at this time.NOTE: VIN detection on Hagie Sprayers is only supported on model year 2019 and newer machines.
NOTE: 21-1 and newer software allows the Gen 4 4640 Universal Display to control the Hagie/Montag Fortifier configuration.
**NOTE: The 4640 Universal Display will replace the GreenStar 3 2630 Display on the armrest. Dual display with the GreenStar 3 2630 Display is not supported with sprayers. The 4640 Universal Display does not use the external display navigation buttons located on the armrest, so these buttons are disabled in this configuration.
John Deere Self-Propelled Forage Harvesters (SPFH)
John Deere SPFH
NOTE: When adding the 4640 Universal Display to a John Deere SPFH, it will only be compatible as a precision ag display and is installed on the side rail.
John Deere Combines
NOTE: Competitive equipment may be compatible with 4640 Universal Display and 4240 Universal Display.*NOTE: When adding the 4640 Universal Display to a John Deere combine, it will only be compatible as a cornerpost precision ag display.
NOTE: RowSense™ sensor voltage readings and sensor offsets are displayed on Original GreenStar Monitor emulator on 50, 60, and 70 Series Combines.
John Deere Cotton Harvesters
NOTE: Update cab controller software to the latest version on model year 2017 and newer cotton harvesters to use Harvest Identification, Cotton Pro.
NOTE: When adding the 4640 Universal Display to a John Deere Cotton Harvester, it will only be compatible as a cornerpost precision ag display.
John Deere Self-Propelled Windrowers
John Deere Self-PropelledWindrowers
NOTE: When adding the 4640 Universal Display to a John Deere self-propelled windrower, it will only be compatible as a cornerpost precision ag display.
*NOTE: For 21-2, a virtual windrower option is available to support W110 to W170 Self-Propelled Windrowers. VIN detection is not available on these machines.
John Deere plantersSeedStar™ 4HP planters are only compatible with 4600 CommandCenter displays with a version 2 (v2) processor and 4640 Universal Displays. Displays should be running the most current version of tractor applications to be compatible with SeedStar 4HP planter applications. Additionally, dual-display mode is available for use with SeedStar 4HP planter applications, along with Generation 4 Extended Monitor. SeedStar 4HP planters are compatible with no more than two GreenStar Rate Controllers.The SeedStar 2 configuration below is available only on factory-installed model year 2011 and newer planters and may be field-installed on model year 2009 and 2010 planters. Green PM/PA controllers (factory-installed on model year 2009 and 2010 planters) are not supported with a Generation 4 display.Service ADVISOR™ is needed to update SeedStar 2, SeedStar XP, and SeedStar 3 HP software. Documentation is not supported when using a rate controller to control row clutches on a John Deere planter.
*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 radar speed kit.
John Deere Air SeedersThe C650 and C850 Air Carts and N500C Seeder are not supported with a GreenStar 3 2630 Display. Additionally, tow-behind C850 Air Carts are compatible with AutoTrac™ Implement Guidance (passive) with software update 18-2 and newer.
John Deere Tillage
2.95K6
John Deere Round Balers
John Deere Large Square Balers
1.591.2 (Planting)7.564.1(Application)2.573.1(Harvesting)
3.8.6 (iOS®)3.8.5 (Android™)
*NOTE: See additional information below.
StarFire ReceiversStarFire Receivers can be updated in the following ways:
John Deere Operations CenterTo use RDA on a Generation 4 CommandCenter Display with a GreenStar 3 2630 Display connected in the same machine, GreenStar 3 2630 software version 3.22.1095 (SU2014-1) or higher is required (for 4600 CommandCenter Display and 4640 Universal Display only).GreenStar Rate Controller DryGreenStar Rate Controller Dry (GDC) 2.11A was the last software version available through Software Manager. GDC 2.20A has been available since spring 2015 and contains diagnostic language updates. This software can only be obtained through Service ADVISOR.John Deere Rate Controller 2000The John Deere Rate Controller 2000 will not control the planter clutches or half-, third-, or quarter-width disconnects on a John Deere planter.AutoTrac Vision
AutoTrac Vision Guidance is only compatible with Generation 4 18-1 software 10.10.404-345 or newer. ISOBUS implementsGeneration 4 displays support two Agricultural Industry Electronics Foundation (AEF) certified ISOBUS control units. The use of two ISOBUS control units is limited to the configuration of one front and one rear implement. The use of multiple ISOBUS control units as rear implements is not supported. Generation 4 displays support AEF-certified ISOBUS implements with Task Controller Section Control (TC-SC) functionality and AEF certification for TC-SC include sprayers, fertilizer spreaders, planters, seeders, manure applicators, etc. For third-party FMIS compatibility, reference the John Deere Operations Center.A software update performed by an authorized ISOBUS implement dealer may be required to obtain compatible software. ISOBUS implements must be certified through the Agricultural Industry Electronics Foundation (AEF) to be recognized by the Generation 4 CommandCenter Display. Visit www.aef-online.org for more information; visit www.aef-isobus-database.org for an active list of compatible implements.ISOBUS implements with VT4 are now supported by Generation 4 displays. Generation 4 displays still support older VT versions (example: VT2 and VT3). If an implement is not loading after updating to Generation 4 software update 2017-2 (or newer on 4600 CommandCenter v2 processors), it is recommended that the implement manufacturer be contacted to get a software version that is either VT3 or VT4.Implements without controllersImplements without controllers can be documented as a stand-alone operation or with a rate controller from John Deere. Additionally, multiple implements without controllers cannot be documented together.AutoPathAutoPath is compatible with 4600 CommandCenter (v2 server) and 4640 Universal Displays running 20-3 or later software.
AutoPath requires specific source operation data (including an implement receiver) gathered during the first field operation of the year.
For more information on AutoPath functionality and requirements, refer to the Sales Manual.
AutoTrac Implement Guidance (passive)
AutoTrac Turn AutomationTo use the AutoTrac Turn Automation application, specific compatibility is required. AutoTrac Turn Automation is compatible with the following machines:
NOTE: Integrated tractor IMS must be turned off on 30 Series Tractors to use AutoTrac Turn Automation on the Generation 4. Integrated Tractor iTEC must be turned off on the following tractors to use AutoTrac Turn Automation on the Generation 4:
NOTE: If instead an operator chooses to use the machine’s integrated IMS/iTEC functionality, then AutoTrac Turn Automation and iTEC must be turned off in the Generation 4 Universal Display.AutoTrac Turn Automation is compatible with SeedStar 4 HP, SeedStar 3 HP, SeedStar 2, and SeedStar XP planters, 1990CCS Seeders, and 1910, C650, and C850 Tow-Behind Air Carts.AutoTrac Turn Automation is compatible with N500C Series Air Tools with selective control valves (SCVs) operating in manual mode. See the "Additional Information" section of DTAC solution 115995 for more information.
AutoTrac Turn Automation is NOT compatible with the following implements and implement configurations:
For more information on AutoTrac Turn Automation, refer to the Sales Manual.
Machine Sync
Supported leader platforms
Supported follower platforms
Reprogramming Application Controllers 1100 and 11204600 CommandCenter v1 does not support reprogramming on the UCC2 version of Application Controller 1100 and 1120. Service ADVISOR or compatible displays may be used.Distance Trip documentation/Yield Documentation, Specialty CropA UCC2 Application Controller 1100 with 19-2 software or newer, running on a 4600 CommandCenter v2 server enables documentation of field operations. If a UCC2 replaces a UCC1 Application Controller 1100 on a CommandCenter v1 server, documentation is not available.Camera compatibilityVoyager® cameras are supported on Generation 4 displays. All other camera types are not supported.Non-John Deere Precision Ag4600 CommandCenter v2 and the 4640 Universal Display are compatible with the following RS-232 configurations with software update 18-2 and newer:
4600 CommandCenter v2 and the 4640 Universal Display are compatible with the following RS-232 configurations with software update 20-3 and newer:
Machine Communication Radio (MCR)Generation 4 displays are not compatible with MCR.APEX™ software
NOTE: Gen 4 data is only compatible with the John Deere Operations Center. All Gen 4 activations are machine specific and cannot be transferred to a different machine. If not using WDT, an 8- to 32-GB USB is required to transfer data to and from the Gen 4 display. Implement settings are display specific and cannot be imported or exported from the Gen 4 display.RAM is a trademark of National Products Inc. Montag is a trademark of Montag Manufacturing, Inc. Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will support Hagie equipment. Reichhardt is a trademark of Reichhardt GmbH Steuerungstechnik. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc. Android is a trademark of Google LLC. Voyager is a trademark of ASA Electronics, LLC. Trimble and GreenSeeker are trademarks of Trimble, Inc.
